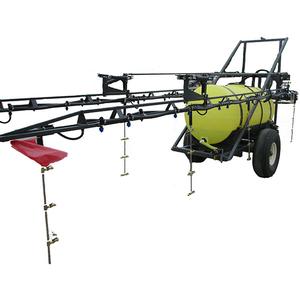

300- or 500-Gallon High-Pressure Produce Sprayers

Designed for vegetable and fruit growers, this sprayer delivers precision coverage and dependable performance. Features include a heavy-duty tubular trailer frame, forged steel hitch, and rigid twin axle assembly with adjustable row spacing from 52 to 64 inches.

Available with 300 or 500 gallon tanks, the 8-row bridged boom offers smooth folding with hydraulic options from 30 to 50 feet. Electric or manual high-pressure controls provide spraying capabilities up to 300 or 500 psi. Nozzle spacing, drop nozzles, and boom width are fully customizable to match your crop and field needs.

Features:

Heavy-duty, pull-type tubular steel trailer frame
Forged steel hitch with vertical adjustment
Available 300- or 500-gallon tanks
Hydraulically operated rear-folding bridged booms
Three-tube steel boom construction with laser-cut brackets and gussets
Bridged boom lengths up to 21' per side; total spraying widths up to 48'
Adjustable boom stiff arms; breakaway hinges and shock absorbers
Adjustable boom height: 30"–72"
Standard manual boom-height adjustment with included chain hoist
Optional hydraulic boom-height adjustment
Optional hydraulic boom tilt with independent or linked left/right adjustment
Customizable boom arms, nozzle spacing, and drop-nozzle arrangements
Multiple high-pressure pump options; PTO or hydraulic drive
Manual high-pressure controls: up to 500 PSI
Electric high-pressure controls: up to 300 PSI
Rigid axle assembly with 9.5L × 15 implement tires and wheels (11L x 15 optional)
Adjustable wheel centers: 52", 56", 60", or 64"
Optional tandem-axle trailer configuration
1½" fill kit with valve and camlock coupler

Tank Size
300 Gallon
500 Gallon
